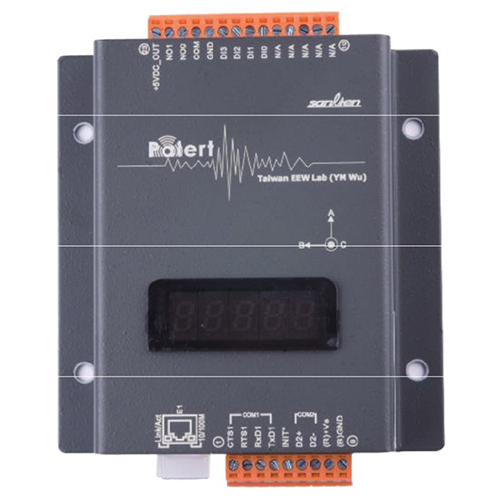

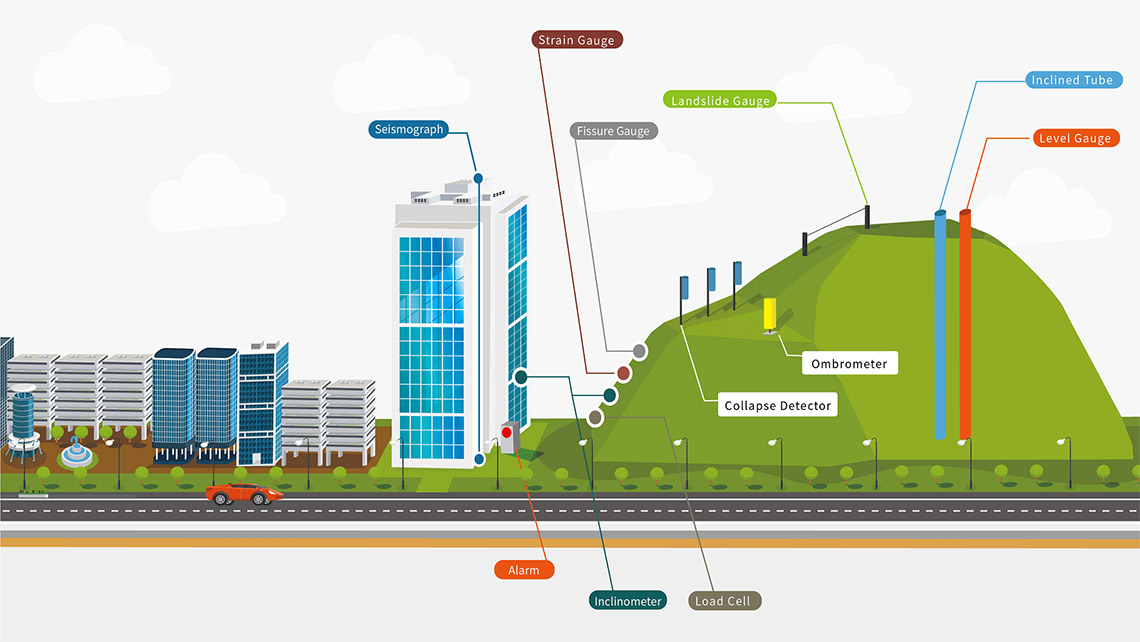

Palert (Accelerometer) DATASHEET

Features
  • The Palert detects the P wave and estimates whether the following shockwave is potentially devastating or not, all within 3 seconds.
  • As part of a regional EEW, given the P wave travels twice as fast as the main seismic activity (S-Wave), it can estimate the shock wave arrival time. This depends on the epicenter and Palert separation.
  • Used locally, or as part of an EEW, and with two seismic switch set points for each digital output plus Modbus TCP connectivity, the Palert allows for switching on or off based on the profile of the imminent quake. E.g. Open doors for escape routes, shut down utilities valves send audible warning, trigger disaster recovery messages, stop lifts and provide every opportunity to save lives and infrastructure.
  • Earthquake data is also recordable when connected to PC using software provided enabling monitoring of smaller quakes and effect on infrastructure.
Specifications
Accelerometer Tri-axial MEMS
  • Type : + 2g(b, c Axes)
  • Range : +1 g/-3g (a Axis)
  • Frequency Response : 0.05-20 Hz
  • Displacement Frequency Response: 0.075 HPF
  • Shock : 3000 g 0.5ms / 10000 g 0.1ms
Resolution
  • Output Resolution : 16 Bit
Earthquake Gauge
  • Algorithm : Pd, PGA, Displacement, STA/LTA
  • STA Setting Range: 0.1-100 seconds
  • LTA Setting Range :0.1–200 seconds
  • Event Duration Time: 1-200 seconds
Switch Set-points
  • Digital Output Numbers : 2
  • Set-point Range : 1~1960 gal
  • Contact Type: Normal Open
  • Contact Capacity:60V / 0.6ADC
  • Hold-On time : User Define
Power
  • Supply Voltage : 10-30 VDC
  • Power (12V): 3.5 W
Input / Output
  • Modbus RTU : RS-232 or RS-485 format 19200, N, 8, 1
  • Modbus TCP: 3 Hosts Simultaneously
  • Modbus ID : Default 101, settable
  • Modbus function : Function 3 and 16
  • Active Connect to TCP Server : Support 2 TCP Servers
  • Time Calibration : Via NTP or PC Utility
  • Data Recording : Via Network by PC Utility
Size
  • Dimension : 125*105* 30 mm
  • Weight:450g (without Power and Cable)
Enviroment
  • Operation Temp:-10-60°C
  • Storage Temp: -20~70°C

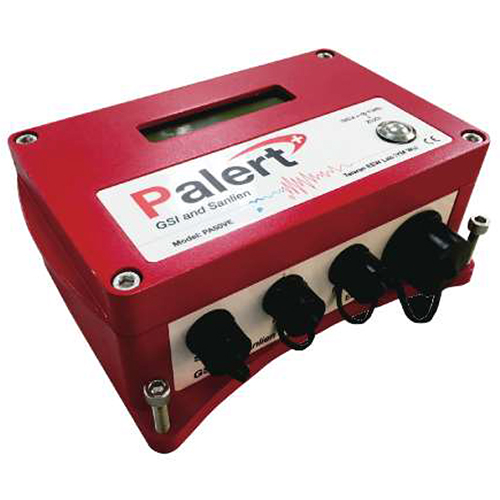

Palert+(Accelerometer)DATASHEET

Features
  • Supports NTP (Network Time Protocol) time calibration
  • Embedded Web Server, for easy set-up
  • 3 sets of Relay Outputs
  • Real-time intensity broadcasting
  • Earthquake data recording
  • Built-in battery backup and shuts down safely automatically, before power outage
  • Display MQTT (Message Queue Telemetry Transport) Emergency messages in real time
  • LCD display warning and status
Specifications
  • CPU: ARM1176JZF-S 700MHz
  • Data Storage Type : 8GB MircroSD
  • Ethernet Controller: 10/100 Base-TX
  • LCD display: 2-line x 20 character
  • Watchdog Timer: 10 seconds
  • RTC Accuracy: +30 seconds/year, adjustable by NTP
  • Tri-axial MEMS (Accelerometer)
  • Range: +2g
  • Dynamic Range :)100dB
  • Internal Velocity Sensor Type: Geophone
  • Full scale : + 100 mm/s
  • Frequency range :0.1 to 315 Hz (linear response) (TBC)
  • Dynamic range :) 130 dB
  • Case to Coil Motion : 4 mmpp
  • Moving Mass : 11.0 +0.1 gram
  • Sensitivity : ) 25 Vm/s
  • Spurious Frequencies :) 240 Hz
  • AD Resolution : 4-and 24-bit data
  • Sampling rate : 50 sps, 100 sps, 200 sps (optional)
Operating Environment
  • Operation Temperature: -10°C~+60°C
  • Operation Relative Humidity : 10~98% RH
  • Dimension(mm) : TBA
  • Weight : TBA
  • Supply Voltage : 9~30 VDC
  • System Power Consumption : 3.5 W
  • Waterproof Rating : 1P67

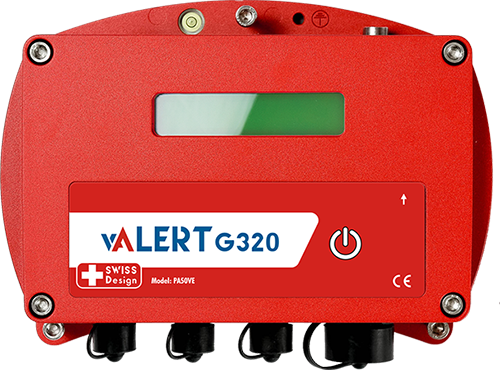

vALERT G320DATASHEET

Features
  • Built-in or External Geophone Sensors
  • Multiple Vibration Standards
  • Open Platform
  • On-site Calculation and Cloud Services
  • Edge Computing Capability

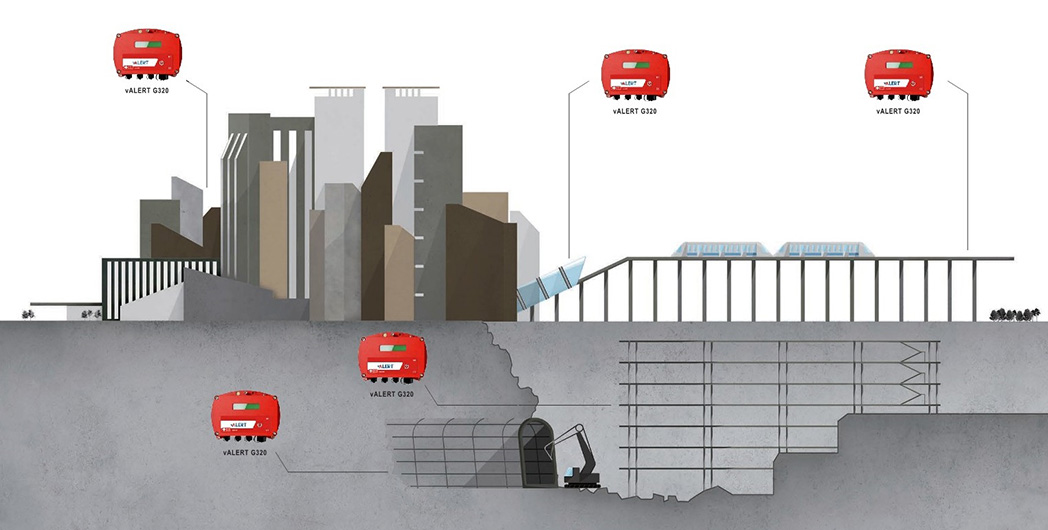

Application
  • Industrial Disaster Prevention
  • Structural Health Monitoring (SHM)
  • Vibration Assessments For Geotechnical Structures
Best Suited
  • Vibration Monitoring of Highway and Railway Bridges
  • Vibration Monitoring of Tunnel Structures
  • Residential Buildings
  • Adjacent and Neighboring during construction works
Specification
  • Sensor Type : Tri-axial geophone (built in or externally connected)
  • Measuring Range : 28.8 V/m/s 7.5%
  • Dynamic Range : 130dB
  • Sample Rate : 100SPS, 200SPS, 500SPS, 1,000SPS
  • Frequency Response : 1 ~ 500Hz
  • ADC : 3-channel @ 24-bit
  • Algorithm : DIN 4150-3
  • RTC Accuracy : 60 sec/year Optional: NTP or GPS
  • Output : Ethernet, Compatible with Modbus Protocol (RTU or TCP / IP)
  • Built-in Watch Dog Function : ±10s
  • Network Module : 10/100 Base – TX Ethernet Controller
  • LED Display : Support
  • CPU : ARM1176JZF-S 700MHz
  • Storage : 16GB Micro SD Card (expandable)
  • Power Supply : 12 ~ 30V DC
  • Power Consumption : 3W @ 12V DC
  • Operating Temperature : -20°C ~ 70°C
  • Waterproof : IP67
  • Dimension (L x W x H) : 217 x 168 x 80mm

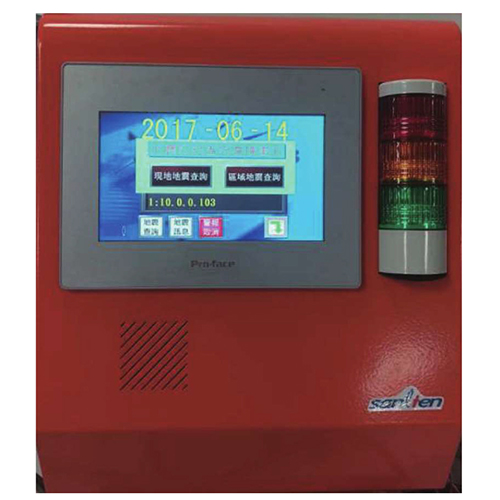

Palert Cube (Smart Hybrid Warning)DATASHEET

Features
  • Industrial grade large size colour touch display interface with a separate high brightness three-colour LED indicator, providing visible warning
  • Regional warning: direct access to a central server for detailed earthquake warning. Messages received can be forwarded to other Cube units providing a substantia increase in warning coverage
  • With high-resolution speakers, pre-recorded voice or highdecibel warning sound can be played the device is equipped with three sets of relay output contacts, to control external devices or drive warning lights. The alarm thresholds are configurable
  • Ability to send MQTT alert message (IOT)
Applications
  • Water mains Pumping/Distribution stations
  • Petrochemical Refineries
  • Hazardous substances management in industrial environments
  • Mining Operations
  • Waste Control
  • Tilt Bridges Tunnels
  • Land based Oil Exploration operations
  • Geothermal Plants, Wind farms, Hydro Electric Plants
  • Hospitals
  • Ski fields, Museums Theatres.
  • Subways, Trains, Trams
  • Structural Building Assessment
Specification
  • Built-in 7" industrial grade touch screen
  • High decibel horn (42)
  • High-resolution three-color 50 OLED (RYG)
  • Built-in clock accuracy (RTC): +60 seconds/year
  • Power: 12 Watt (@24VDC)
Environment
  • Operating temperature: -20°C to + 70°C
  • Relative humidity: 5 to 90% RH, non-condensing
  • Domension ( WHD): 300mmx35mmx122mm
  • Weight: 5.8kg

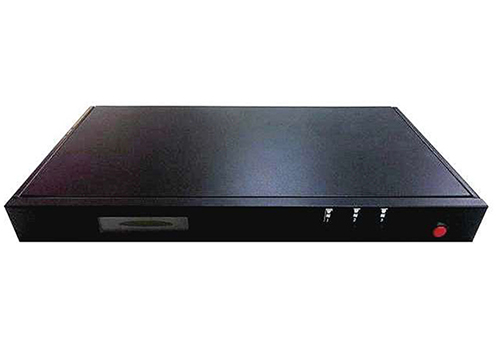

PX-01(EEW MAIN CONTROL UNIT / DATA LOGGER)DATASHEET

The PX-01 has a number of Modbus registry entries to manage configuration including IP address, trigger level of digital outputs, number of Palerts required to trigger out of all connected.

Features
  • Modubus TCP 프로토콜 지원
  • NTP서버 및 클라이언트 지원
  • 릴레이 접점 지원 (3 output)
  • 조기 지진경보 방송 시스템 기능
  • 지진 이벤트 저장 기능
Specification
  • Ethernet Port 10/100Base-TX Ethernet Controller
Environment
  • Relative Humidity: 5 ~90% RH, non-condensing
  • Dimensions(W x H x D): 550 mm x 425 mm x 44.5 mm
  • Power Requirement: 110-220AC
  • Power Consumption: 4W
시스템 구성도

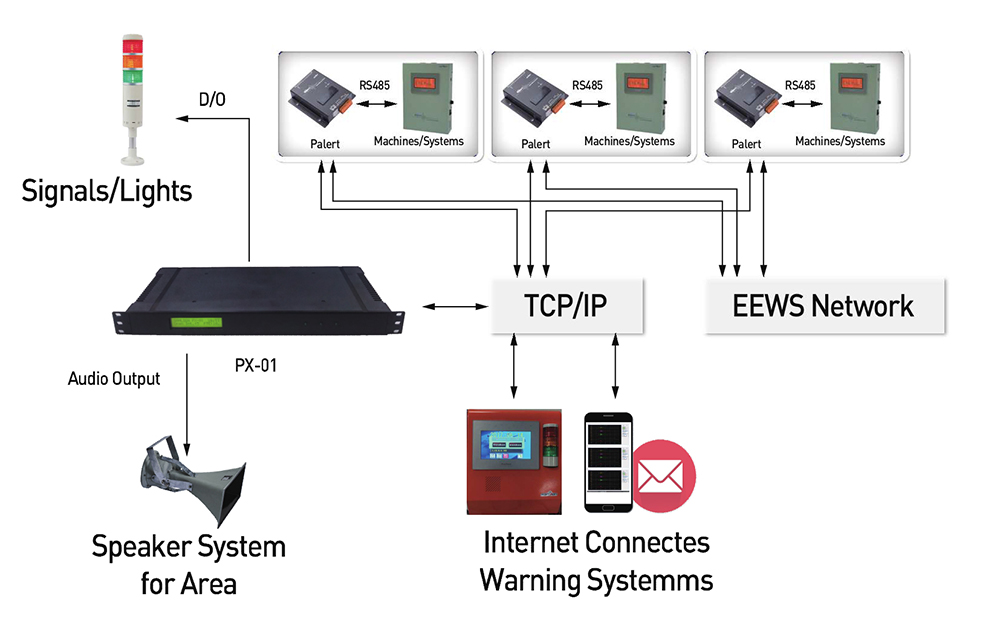

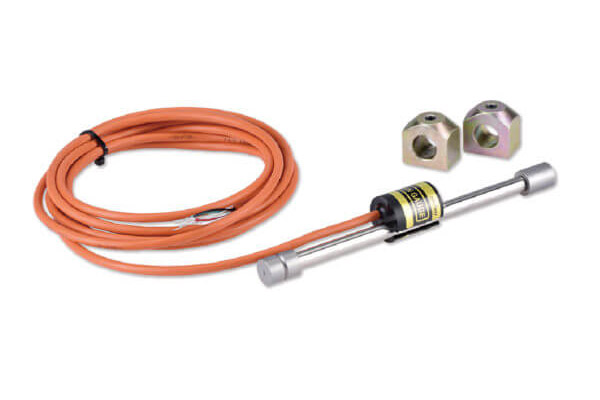

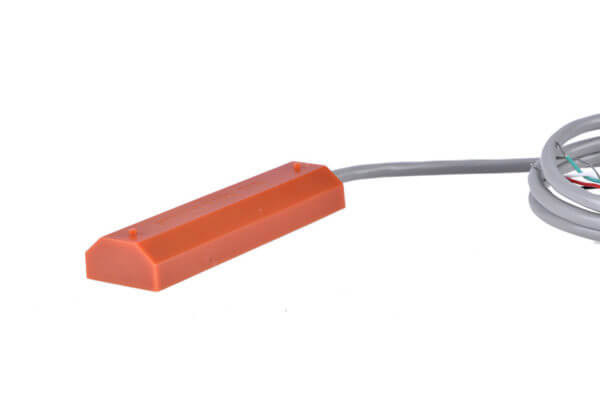

Spot-Weldable Strain Gauge(VG-001 & VG-002)DATASHEET

Vibrating wire stain gauges are used to monitor strain in structure surface for safety and stability. VW spot-weldable strain gauges are easily fixed on steel beam or pipe surface using spot-welders and require only a little installation space. The gauge is composed by a tense wire enclosed in a metallic cylinder. The wire is excited with electric signal via coils fixed on the gauge plastic cover. Strain on the structure surface is recorded through changes in the vibrating wire frequency.

Features
  • High Accuracy
  • Excellent Waterproofing
  • High Resolution
  • VW HUB Measurement
Application
  • Stress and strain monitoring of load support system
  • Stress and strain monitoring of steel structure
Sensor Specification
  • Sensor TypeVibrating Wire
  • Measuring Range3000 micro-strain
  • Accuracy±0.1% F.S.
  • Resolution1 micro-strain
  • Temperature TypeThermistor resolution 0.1°C
  • DimensionSensor : 85 x 25 x 14 mm
    Tablets : 70 x 9 x 2.4 mm
  • Temperature Range-30°C ~ +80°C

VW Arc-Weldable Strain Gauge(SG-1001)DATASHEET

VW Arc-Weldable Strain Gauge has a steel cord with two ends fixed on a metal rod. When the metal rod sustains a micro deformation caused by an external force, the vibration frequency of the steel cord varies according to the deformation. Such gauges can be installed on rod elements of steel structures to monitor stress distribution.

Features
  • High Accuracy
  • Excellent Waterproofing
  • High Resolution
  • VW HUB Measurement
Application
  • Measurement of support loading
  • Measurement of sectional stress of steel structures
  • Measurement of sectional stress of axial forces
Sensor Specification
  • Sensor TypeVibrating Wire
  • Measuring Range3000 micro-strain
  • Accuracy±0.1% F.S.
  • Resolution1 micro-strain
  • Temperature TypeThermistor resolution 0.1°C
  • DimensionGauge Length：150 mm
    Rod Length：165 mm
  • Temperature Range-30°C ~ +80°C

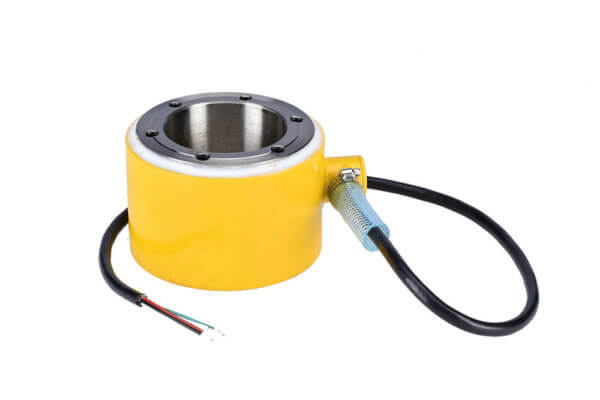

Annular Load CellDATASHEET

The annular load cell consists of 4 active resistors, 350-ohm strain gauges evenly attached to the sensing element. The serial bridge gives an output signal of the axial force measurement system, applicable to load tests of respective stresses.

Features
  • High Precision and Accuracy
  • High Sensitivity and Responsiveness
  • Applicable to Multiple Recorders
  • Multiple Ranges of Loading
Application
  • Measurement of sectional stress of anchor bolt loading
  • Measurement of sectional stress of prestressed anchors
  • Measurement of sectional stress of tunnel bolts
Sensor Specification
  • Sensor TypeResistant
  • Measuring Range50~1000 ton
  • Accuracy±1% R.O.
  • Max Pressure150%
  • Rated output2mV/V ± 1%
  • Repeatability0.3% R.O.
  • Recommended voltage2 ~ 10V
  • Inputs resistance350Ω ± 3.5Ω
  • Output resistance350Ω ± 5Ω
  • Insulation resistance2000MΩ

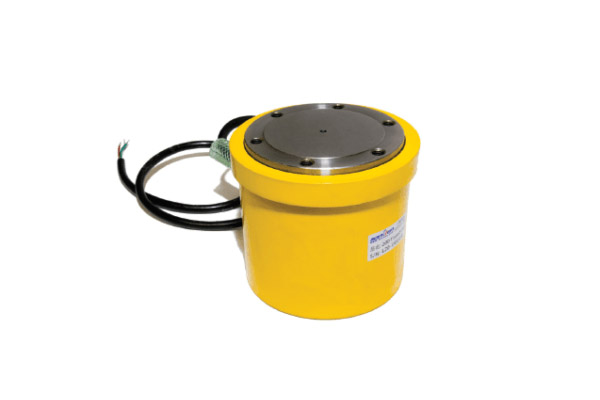

Solid Load CellDATASHEET

The solid load cell consists of 4 active resistors, 350-ohm strain gauges evenly attached to the sensing element. The serial bridge gives an output signal of the axial force measurement system, applicable to load tests of respective stresses.

Features
  • High Precision and Accuracy
  • High Sensitivity and Responsiveness
  • Applicable to Multiple Recorders
  • Multiple Ranges of Loading
Application
  • Measurement of sectional stress of anchor bolt loading
  • Measurement of sectional stress of prestressed anchors
  • Measurement of sectional stress of tunnel bolts
Sensor Specification
  • Sensor TypeResistant
  • Measuring Range50~1000 ton
  • Max Pressure150%
  • Rated output2mV/V ± 1%
  • Repeatability0.3% R.O.
  • Recommended voltage2 ~ 10V
  • Inputs resistance350Ω ± 3.5Ω
  • Output resistance350Ω ± 5Ω
  • Insulation resistance2000MΩ
  • Temperature Range-20°C ~ +100°C
