ICU-X2 DATASHEET

This product is a data collection alarm device that is linked with MA301+, and enables real-time monitoring along with data collection. It is also equipped with a false alarm prevention and emergency building damage assessment algorithm, and provides stability assessment (whether or not a precise diagnosis is made) for emergency building damage based on the maximum inter-story displacement ratio, natural frequency change rate, and design acceleration exceedance rate, which are domestic emergency building stability assessment indices.

긴급 건축물 손상도 평가 알고리즘이 탑재된 자료수집경보장치

Specification

• 프로세서 Intel 8th
• 코어 1.1-3.4 Ghz Dual
• 그래픽 Intel HD 615
• 저장공간 500 GB(확장가능)
• 입력포트 6 Port(확장가능)
• USB USB 3.0 x 2
• HDMI HDMI 2.0B
• 접점단자 2 contact point
• 무선통신 WIFI, Bluetooth
• 음성출력 Speaker
• 경보단자 3단계 LED
• 운영OS Windows 10
• 적용 알고리즘긴급 건축물 손상도 평가
  2 of 3 오경보 방지
• 사이즈 (D)220 (W)250 (H)60
• 무게 1.5Kg

• Processor Intel 9th
• Core 2.0-2.9 Ghz 4 Core
• Graphic Intel HD 615
• Storage 64 GB(Scalable)
• Input Port 6 Port(Scalable)
• USB USB 3.0 x 2
• HDMI HDMI 2.0B
• Contact Terminal 2 contact point
• Wireless Communication WIFI, Bluetooth
• Alarm Terminal 3-Stage LED
• OS Windows 10
• AlgorithmStructural Health Monitoring
  2 of 3 false alarm Prevention
• Size (D)220 (W)250 (H)60
• Weight 1.5kg

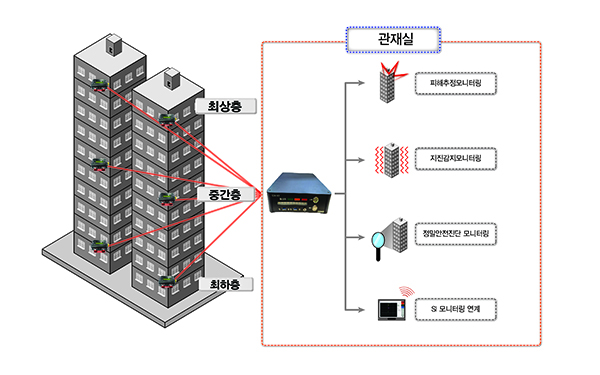

설치 모식도

Installation schematic diagram

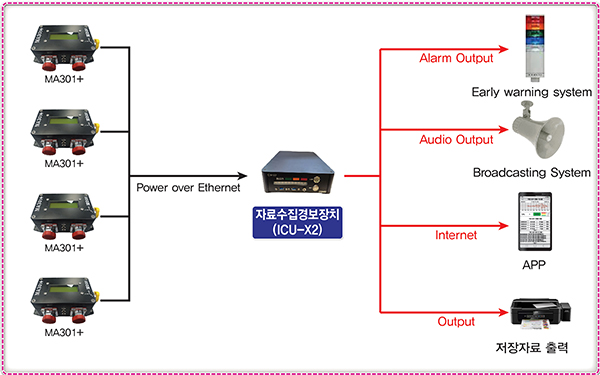

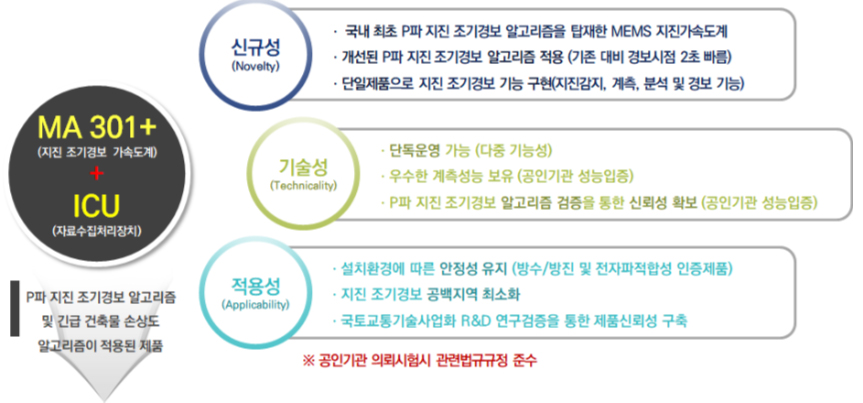

제품 구성도

Product Configuration

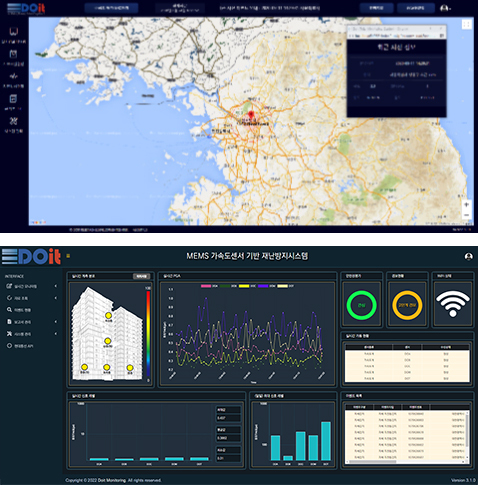

• 실시간 지진 계측자료 수집 및 모니터링 기능
• 이벤트 규모에 따른 3단계의 경보 발령
• 지진 사전경보 방송시스템 기능 지원

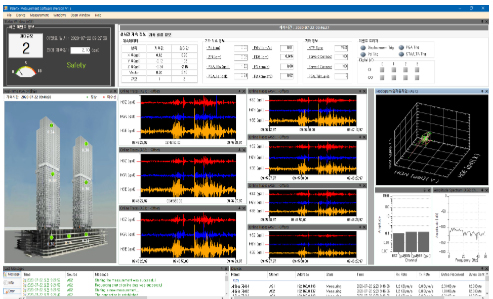

• 주파수 응답모드, 호도그램, 변위해석 기법을 통한 손상부위 모니터링 지원
• 2 of 3 알고리즘을 통한 오경보 방지기능 탑재
• 2 릴레이 접점신호를 이용한 기기제어 가능

• Real-time earthquake data acquisition and monitoring
• Three-level alarm system based on event magnitude
• Supports pre-earthquake warning broadcast system functionality
• Supports damage monitoring through frequency response mode, hodogram analysis, and displacement analysis techniques
• Equipped with a 2-of-3 algorithm to prevent false alarms
• Device control available via two relay contact output signals
